Features
• This kit includes an 8 CH H.264 standalone DVR and 8 night vision outdoor security cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.

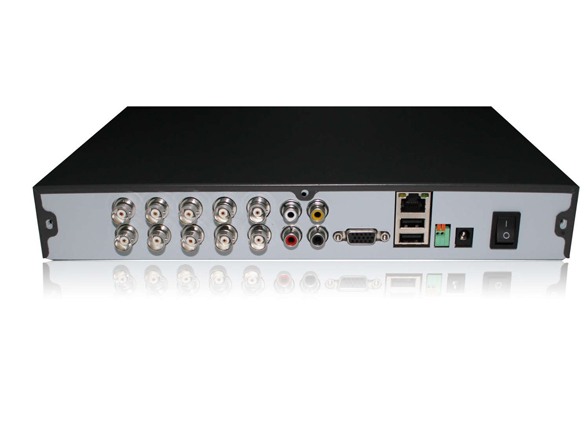

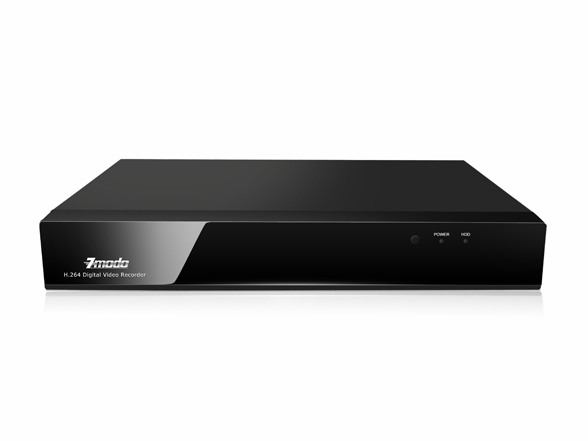

• Under Embedded Linux operating system, the 8 channel standalone DVR included in this DVR Camera System is a modern-looking, fully integrated, real time, hardware-based digital video recorder
• With Pan/Tilt/Zoom (PTZ) camera control, network access, 4G/3G Mobile access and USB2.0 backup, this 8 channel security DVR is perfect to be used at home, store, and parking lot

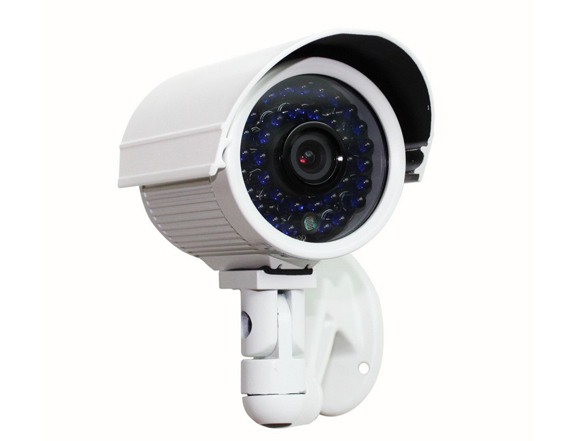

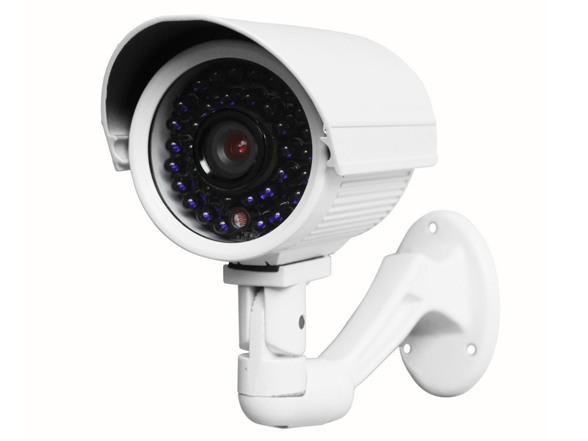

• With these eight indoor and outdoor CCTV cameras in this package, you can monitor the people and places you care about most
• Featuring imaging provided by a large 1/3" Sony CCD image sensor with 35 built in IR LEDS, this weatherproof CCTV camera delivers crystal color video image in daylight, as well as black and white video in darkness up to 80ft away
DVR Features
- H.264 Hardware Compression
- Video Input / Output: BNC 8/BNC 1
- Video Output: VGA
- Audio Input / Output: RCA 4/BNC 1
- Recording Mode: Continuous/Scheduled/Motion
- Display Mode: Each/All/Auto Switch/Hidden
- Playback Search: Time & Date, Event List
- Network:RJ45 TCP/IP or DDNS
- Remote Access: LAN or IE Browser
- IR Remote Control
- PTZ via RS-485 Port
- Hard Drive NOT included
Supports Remote View via 4G/3G smartphone & tablets with each of those systems below:
a) iPhone™ & iPad™
b) Google Android™
c) Blackberry™ 7
d) Windows Mobile™ Pro 5.5~6.1
e) Symbian™ V3 & V5
Camera Features
- 1/3" Sony Color CCD Image Sensor
- Signal: NTSC
- 420 TV Lines, Horizontal
- 6mm Lens
- Night Vision Min. Light: 0 Lux (IR On)
- IR Irradiation Distance: 80' (25m)
- Operation Temperature: -25F~122F
- Weatherproof: Indoor and Outdoor
- Mount: Ceiling or Wall
- Power: 12V DC
Warranty: 1 Year Zmodo
Specs
DVR-H9118V-StandAlone DVR | |
---|---|
Video Compression: | H.264 |
Video System: | NTSC / PAL |
Operation System: | Linux Based |
Video Input / Output: | BNC 8-Channel Input / 1-Channel Output |
Other Video Output: | VGA |
Audio Input / Output: | RCA 4-Channel Input /BNC 1-Channel Output |
Display Frame Rate: | NTSC: 240fps@D1/ PAL: 200fps@D1 |
Display Resolution: | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
Recording Frame Rate: | NTSC: 56 fps @ D1 /120 fps @ HD1 / 240 fps @ CIF/PAL: 48 fps @ D1 /100 fps @ HD1/ 200 fps @ CIF |
Record Resolution: | Selectable: NTSC: D1(704*480), HD1(704*240), CIF(352*240)/PAL: D1(704*576), HD1(704*288), CIF(352*288) |
Record Mode: | Continuous / Time Schedule / Motion Detection |
Recording Pack Time: | 15/30/45/60mins Selectable |
Network Function: | Support Live View with IE & Mobile Phone |
Network: | RJ45, 10M/100M |
Net Protocol: | TCP/IP, PPPoE, DHCP and DDNS |
Remote Access: | LAN or Internet Browsing |
PTZ Control: | RS-485 |
HDD Interface: | SATA, Support up to 2TB (NOT included) |
USB: | USB Backup/USB 2.0 |
Remote Control: | IR Remote Control |
Power Supply: | DC12V, 3A |
Dimension: | 290mm (W) x 230mm (D) x 42mm (H) |
CM-S22326BG- Indoor/Outdoor IR Color Camera | |
---|---|
Image Sensor: | 1/3" Sony Color CCD |
TV System: | NTSC |
Effective Pixels: | NTSC: 510 (H) x 492 (V) |
Horizontal Resolution: | 420 TV-Lines |
Scanning System: | 2:1 Interlace |
Number of IR LEDs: | 35 |
Minimum Illumination: | IR on 0 Lux |
Infrared Illumination (Night Vision): | Visible up to 80' (25m) |
Synchronization System: | Internal Synchronization |
S/N Ratio: | > 48dB |
Gamma: | 0.45 |
Auto Gain Control: | Built-in |
Lens Mount: | Board Lens: 6 mm |
Operating Temperature: | -25°F~122°F / -32°C ~50°C |
Weatherproof: | Yes |
Power: | 12V DC |
Video Out: | 1.0V p-p 75 O, BNC Connector |
Auto Iris: | Video / DC |
Back Light Comp: | Auto |
Auto White Balance: | Auto |
Dimensions(WxDxH): | 6.3" x 2.8" x 2.8" |
Weight: | 1.05lbs |
Material: | Aluminum Alloy |
In the box:
- (1) DVR-H9118V 8CH DVR
- (8) CM-S22326BG Outdoor CCTV Camera
- (4) 25ft CCTV Video + Power All-in-one Cable for Security Cameras
- (4) 50ft CCTV Video + Power All-in-one Cable for Security Cameras
- (1) 12V 5A 9 Port Power Adaptor for Surveillance Cameras
- (1) IR Remote Control
- (1) User's Manual
Specs
DVR-H9118V-StandAlone DVR | |
---|---|
Video Compression: | H.264 |
Video System: | NTSC / PAL |
Operation System: | Linux Based |
Video Input / Output: | BNC 8-Channel Input / 1-Channel Output |
Other Video Output: | VGA |
Audio Input / Output: | RCA 4-Channel Input /BNC 1-Channel Output |
Display Frame Rate: | NTSC: 240fps@D1/ PAL: 200fps@D1 |
Display Resolution: | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
Recording Frame Rate: | NTSC: 56 fps @ D1 /120 fps @ HD1 / 240 fps @ CIF/PAL: 48 fps @ D1 /100 fps @ HD1/ 200 fps @ CIF |
Record Resolution: | Selectable: NTSC: D1(704*480), HD1(704*240), CIF(352*240)/PAL: D1(704*576), HD1(704*288), CIF(352*288) |
Record Mode: | Continuous / Time Schedule / Motion Detection |
Recording Pack Time: | 15/30/45/60mins Selectable |
Network Function: | Support Live View with IE & Mobile Phone |
Network: | RJ45, 10M/100M |
Net Protocol: | TCP/IP, PPPoE, DHCP and DDNS |
Remote Access: | LAN or Internet Browsing |
PTZ Control: | RS-485 |
HDD Interface: | SATA, Support up to 2TB (NOT included) |
USB: | USB Backup/USB 2.0 |
Remote Control: | IR Remote Control |
Power Supply: | DC12V, 3A |
Dimension: | 290mm (W) x 230mm (D) x 42mm (H) |
CM-S22326BG- Indoor/Outdoor IR Color Camera | |
---|---|
Image Sensor: | 1/3" Sony Color CCD |
TV System: | NTSC |
Effective Pixels: | NTSC: 510 (H) x 492 (V) |
Horizontal Resolution: | 420 TV-Lines |
Scanning System: | 2:1 Interlace |
Number of IR LEDs: | 35 |
Minimum Illumination: | IR on 0 Lux |
Infrared Illumination (Night Vision): | Visible up to 80' (25m) |
Synchronization System: | Internal Synchronization |
S/N Ratio: | > 48dB |
Gamma: | 0.45 |
Auto Gain Control: | Built-in |
Lens Mount: | Board Lens: 6 mm |
Operating Temperature: | -25°F~122°F / -32°C ~50°C |
Weatherproof: | Yes |
Power: | 12V DC |
Video Out: | 1.0V p-p 75 O, BNC Connector |
Auto Iris: | Video / DC |
Back Light Comp: | Auto |
Auto White Balance: | Auto |
Dimensions(WxDxH): | 6.3" x 2.8" x 2.8" |
Weight: | 1.05lbs |
Material: | Aluminum Alloy |
In the box:
- (1) DVR-H9118V 8CH DVR
- (8) CM-S22326BG Outdoor CCTV Camera
- (4) 25ft CCTV Video + Power All-in-one Cable for Security Cameras
- (4) 50ft CCTV Video + Power All-in-one Cable for Security Cameras
- (1) 12V 5A 9 Port Power Adaptor for Surveillance Cameras
- (1) IR Remote Control
- (1) User's Manual
