Warranty:  1 Year Zmodo

Condition: New

Features:

• Surveillance kit includes an 16 channel H.264 real-time standalone DVR with 1TB Hard Drive, eight indoor/outdoor color IR security cameras, cabling and mounting hardware
• Everything you need to have your surveillance system up and running in your home or business quickly and easily
• The DVR is a 16 channel, fully integrated, real time, and hardware based standalone digital video recorder
• Supports up to 2TB 3.5” SATA hard drive (1TB Included) and includes (2) hard drive mounting screws
• A hard drive is not needed when using cameras for surveillance, but is required when using DVR for recording camera images
• WD's surveillance drives enable digital video surveillance systems to deliver a comprehensive range of features and capabilities such as high resolution image quality, streaming video from multiple cameras, video archiving with ultra-fast data access and on-demand video playback.
• The DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation
• DVR functionality is easily controlled by using either the remote control or the front panel controls on the DVR
• DVR supports network access through Ethernet RJ45 interface
• Support DVR backup via USB flash drive, removable drive, recorder and network
• The DVR also features the most updated 4G/3G mobile live! Preview via mobile devices.(iPhone, iPad, Android devices, Blackberry and Windows Mobile phones)
• Use the 15-pin VGA output to connect a computer monitor (not included)
• Playback resolution 704x480
• The cameras included in the kit are weatherproof, day/night, security cameras with 30ft night vision
• Record Mode options include Continuous, Time Schedule, and Motion Detection
• Each camera comes with a 60-foot power and BNC video all-in-one cable
• All eight cameras are powered by one AC adapter using an 8-way power splitter

DVR Features:

• Embedded Linux OS
• H.264 Hardware Compression
• Includes a Western Digital AV-GP WD10EURS 1TB SATA 3.0Gb/s 3.5” Internal Hard Drive
• Drive is desigend to last in always-on, streaming digital audio/video environments such as PVRs, DVRs and surveillance video recorders
• Designed for 24x7 operation, WD drives with WD GreenPower Technology™ consume less power during spin-up and operation, minimize heat dissipation and vibration, and operate reliably without compromising performance
• Supports SATA HD up to 2TB (1TB Hard Drive Included)
• Support External DVD Writer Backup via USB
• Video Input / Output: BNC 16CH/ BNC 2CH
• Other Video Output: VGA and HDMI
• Audio Input / Output: RCA 4CH / RCA 2CH
• Signal System: NTSC / PAL
• Display: 480 fps
• Record: 480 fps
• Recording Mode: Continuous / Time Scheduled / Motion Detection / Sensor Triggered /Netviewer Recording
• Playback Search: Time & Date, Event List
• Remote Access: Internet Explorer or Netviewer Software
• IR Remote Control
• Support Remote View via Smart Phone & 3G/4G Mobile: iPhone™/ iPad, Google Android™, Blackberry™ OS V4.7, Windows Mobile™ Pro 5.0 & 6.1, Symbian™ S60 3rd & S60 5th.
• PTZ via RS-485 Port
• Sensor/Alarm: 4 CH Input/1CH Output
• Plug-n-Play
• Remote Access: Internet Explorer or Netviewer Software
• PTZ via RS485 Port
• Support Remote View via Smart Phone & 3G Mobile with each of those systems below: a) iPhone™ b) Google Android™ c) Blackberry™ OS V4.7 d) Windows Mobile™ Pro 5.0 & 6.1 e) Symbian™ S60 3rd & S60 5th

Camera Features:

• 1/4” Color CMOS Image Sensor
• 420 TV Lines, Horizontal
• 6mm Lens
• Signal: NTSC
• Night Vision Min. Light: 0 Lux (IR On)
• IR Irradiation Distance: up to 30’
• Operation Temperature: -5F ~ 120F
• Weatherproof: Yes
• Power: 12V DC
• Mount: Ceiling or Wall
• Video Connector: BNC
• Power Connector: RCA 12V DC
• Color: Black

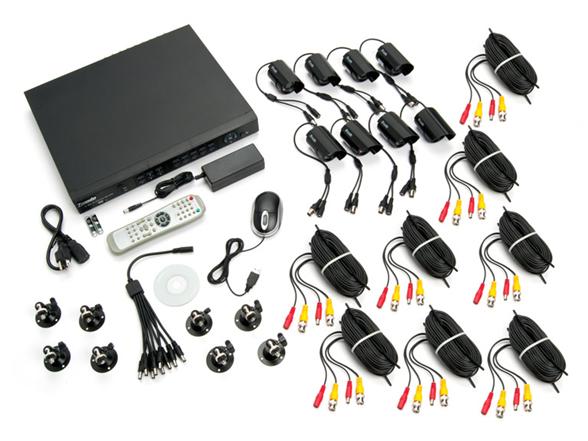

In the box:

• (1) DVR-H9116UVDH DVR System with AV-Class 1TB Drive
• (8) CM-C11306BK Outdoor Security Camera with Bracket
• (8) 60ft Surveillance Video + Power All-in-one Cable
• (1) 12V/5A  Power Supply
• (1) IR Remote Control
• (2) AA Batteries
• (1) Mouse
• (1) User’s Manual
