Bowls well that ends well
8 surveillance cameras? That’s one for every bowling trophy! Because I have eight bowling trophies. Just wanted to make that clear.
So this Zmodo 16 Channel Surveillance System with 8 cameras is perfect for me! Especially since they’re weatherproof. That way I can display in my front yard if I want to. And I do want to. So I do.
Now, It’d be a different story if I needed a camera for every perfect game I ever bowled. Because then I would need 12 cameras. Because I’ve bowled 12 perfect games. But you don’t need surveillance cameras for perfect games. Because they’re not objects. But they did happen. 12 different times. To me. And by “they did happen” I mean, I made them happen. With my skills. Also, just to be clear, there were cameras. Just not surveillance cameras. TV cameras.
And if I needed a surveillance camera for every moment I inspired someone, well jeez! I don’t know how many cameras I’d need. But definitely a lot. We’re talking about an undefinable, but undoubtedly large amount of cameras. If I had to get a new security camera for every person I inspired, I’d be getting a new camera every day. Maybe a new camera every hour. I’d be getting a new camera every time I take out my smart phone and show someone survellance footage of my 8 bowling trophies sitting proudly on my front yard via Zmodo’s DVR-supported Live View. And I show that everyone. Like, absolutely everyone.
But yeah, since I just need cameras for my 8 bowling trophies, this system works great. But I anticipate getting some additional cameras soon. Because I will win more trophies. That’s what I was implying there.
Warranty: 1 Year Zmodo
Condition: New
Features:
- Surveillance kit includes an 16 channel H.264 real-time standalone DVR, eight indoor/outdoor color IR security cameras, cabling and mounting hardware
- Everything you need to have your surveillance system up and running in your home or business quickly and easily
- The DVR is a 16 channel, fully integrated, real time, and hardware based standalone digital video recorder
- Supports up to 2TB 3.5” SATA hard drive (Not Included) and includes (2) hard drive mounting screws
- A hard drive is not needed when using cameras for surveillance, but is required when using DVR for recording camera images
- The DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation
- DVR functionality is easily controlled by using either the remote control or the front panel controls on the DVR
- DVR supports network access through Ethernet RJ45 interface
- Support DVR backup via USB flash drive, removable drive, recorder and network
- The DVR also features the most updated 3G mobile live! Preview via mobile phone
- Use the 15-pin VGA output to connect a computer monitor (monitor not included)
- The cameras included in the kit are weatherproof, day/night, security cameras with 30ft night vision
- Record Mode options include continuous, time scheduled, motion detection, alarm triggered, remote networking
- Each camera comes with a 60-foot power and BNC video all-in-one cable
- All eight cameras are powered by one AC adapter using an 8-way power splitter
- Monitor is not included in the package
DVR Features:
- Embedded Linux OS
- H.264 Hardware Compression
- Support SATA HD up to 2TB (Not Included)
- Support External DVD Writer Backup via USB
- Video Input / Output: BNC 16CH/ BNC 2CH
- Other Video Output: VGA and HDMI
- Audio Input / Output: RCA 4CH / RCA 2CH
- Signal System: NTSC / PAL
- Display: 480 fps
- Record: 480 fps
- Recording Mode: Continuous / Time Scheduled / Motion Detection / Sensor Triggered /Netviewer Recording
- Playback Search: Time & Date, Event List
- Remote Access: Internet Explorer or Netviewer Software
- IR Remote Control
- Support Remote View via Smart Phone & 3G Mobile: iPhone™, Google Android™, Blackberry™ OS V4.7, Windows Mobile™ Pro 5.0 & 6.1, Symbian™ S60 3rd & S60 5th.
- PTZ via RS-485 Port
- Sensor/Alarm: 4 CH Input/1CH Output
- Plug-n-Play
- Remote Access: Internet Explorer or Netviewer Software
- PTZ via RS485 Port
- Support Remote View via Smart Phone & 3G Mobile with each of those systems below: a) iPhone™ b) Google Android™ c) Blackberry™ OS V4.7 d) Windows Mobile™ Pro 5.0 & 6.1 e) Symbian™ S60 3rd & S60 5th
Camera Features:
- 1/4” Color CMOS Image Sensor
- 420 TV Lines, Horizontal
- 6mm Lens
- Signal: NTSC
- Night Vision Min. Light: 0 Lux (IR On)
- IR Irradiation Distance: up to 30’
- Operation Temperature: -5F ~ 120F
- Weatherproof: Yes
- Power: 12V DC
- Mount: Ceiling or Wall
- Video Connector: BNC
- Power Connector: RCA 12V DC
- Color: Black
Additional Photos:
- DVR Front Profile
- DVR Back Profile

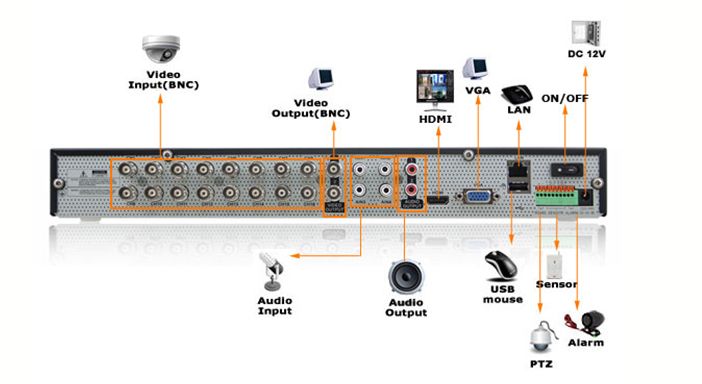

- Rear Connections
- Outdoor Camera
- Remote Control
- Mouse
- Package Contents
- Packaging
|
DVR Specifications |
|
| Video Compression: | H.264 |
| Video System: | NTSC / PAL |
| Operation System: | Linux Based |
| Video Input / Output: | BNC16-Channel Input/ BNC 2-Channel Output |
| Other Video Output: | VGA and HDMI |
| Sensor / Alarm: | 4 CH Sensor Input / 1 CH Alarm Output |
| Audio Input / Output: | RCA 4 Channel Input / 2 Channel Output |
| Display Frame Rate: | NTSC: 480 fps @ D1/ PAL: 400 fps @ D1 |
| Display Resolution: | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate: | NTSC: 480 fps @ CIF/ PAL: 400 fps @ CIF |
| Record Resolution: | NTSC: CIF (352 x 240) / PAL: CIF (352 x 288) |
| Record Mode: | Continuous / Time Scheduled / Motion Detection / Alarm Triggered / Remote Networking |
| Recording Pack Time: | 15/30/45/60mins Selectable |
| Network Function: | IE View / Live Monitoring / DVR Setting / Mobile & Email Function |
| Network: | RJ45, 10M/100M |
| Net Protocol: | TCP/IP, UDP, DHCP, DNNS, PPPoE |
| Remote Access: | LAN or Internet Browsing |
| 3G Mobile Support: | Mobile Phone Based on iPhone™; Google Android™; Blackberry™ OS V4.7; Windows Mobile™ Pro 5.0 & 6.1; Symbian™ S60 3rd & S60 5th |
| HDD Interface: | SATA, Support up to 2TB, not included |
| Playback Mode: | Normal Play / Fast Forward / Fast Rewind /Slow Play Frame by Frame |
| DVD RW: | USB 2.0/ USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD |
| USB: | Backup via Flash Disk / Removable HDD / CD/DVD-RW / Network |
| Remote Control: | IR Remote Control |
| Power Supply: | DC12V, 5A |
| Dimensions: | 17” x 15” x 2.8” |
| Camera Specifications | |
| Image Sensor: | 1/4” Color CMOS |
| TV System: | NTSC |
| Effective Pixels: | NTSC: 656 (H) x 492 (V) |
| Horizontal Resolution: | 420 TV-Lines |
| Lens: | 6mm |
| Number of IR LEDs: | 11 |
| Infrared Illumination (Night Vision): | Up to 30’ |
| Minimum Illumination: | 0.0 Lux |
| Weatherproof: | Yes |
| S/N Ratio: | 1.0Vp-p, 75ohms |
| Video Output: | 1.0Vp-p, 75ohms |
| Operating Temperature: | -10°C~60°C |
| Power: | 12V DC |
| Dimensions: | 2.2” (W) x 3” (D) x 2” (H) |
| Gross Weight: | 0.48 lbs |
| Material: | Aluminum Cover |
In the box:
- (1) DVR-H9116UVDH DVR System (Hard Drive NOT Included)
- (8) CM-C11306BK Outdoor Security Camera with Bracket
- (8) 60ft Video + Power All-in-one Cable for Security Camera
- (1) 12V/5A Power Supply for Security Camera
- (1) IR Remote Control & Mouse
- (1) User’s Manual
